STUDIOMASTER digiLivE 16 20 Input Digital Mixing Console

0 Rating & 0 Reviews

*AED 2,199.00
Price inclusive of tax
Price Ex. Tax:AED 2,199.00
Share via:
Sold by : Easy Pick
In Stock :-1 Product Details :
  • Brand: Studiomaster
  • Model: DIGILIVE16
Expected Delivery Time

Within 2 days

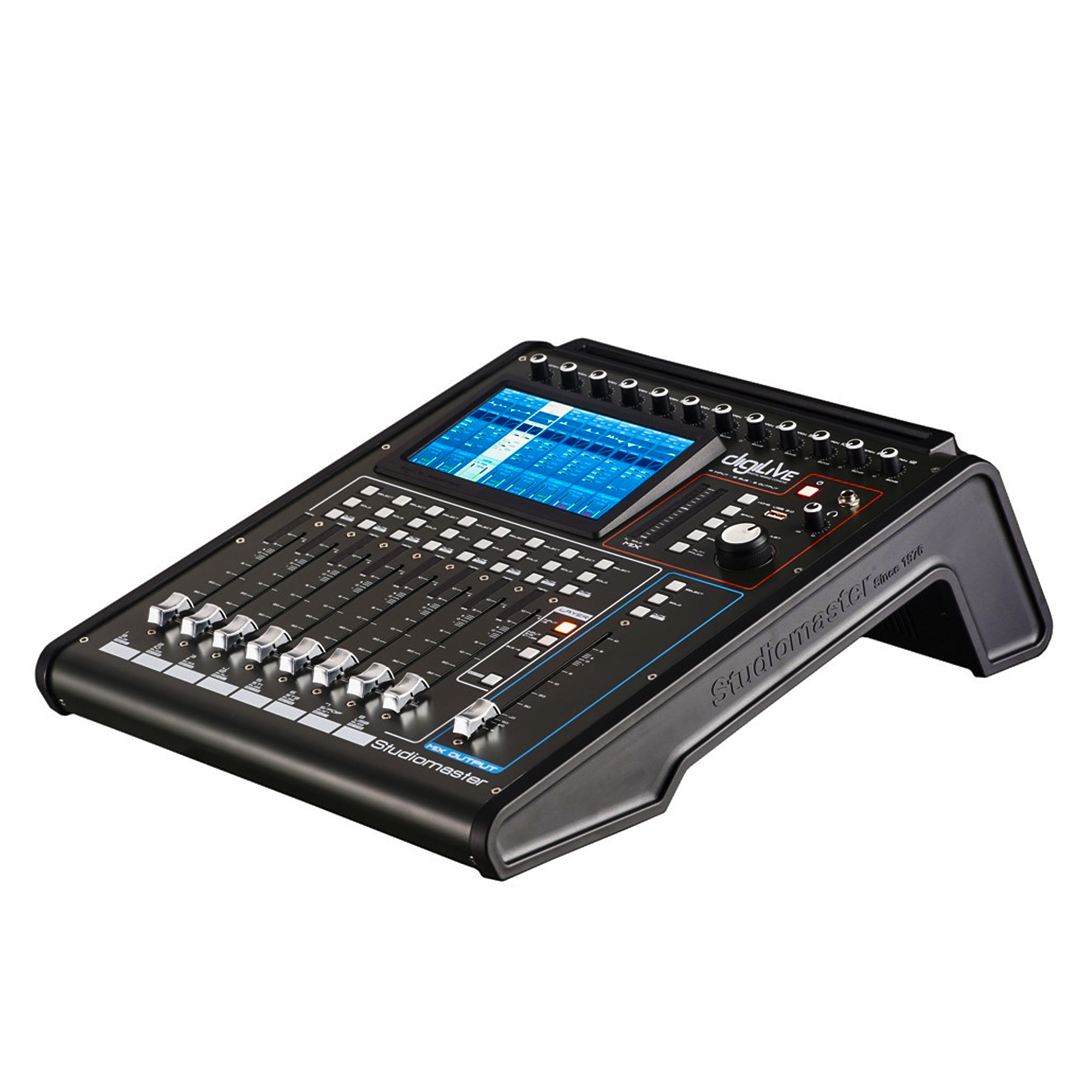

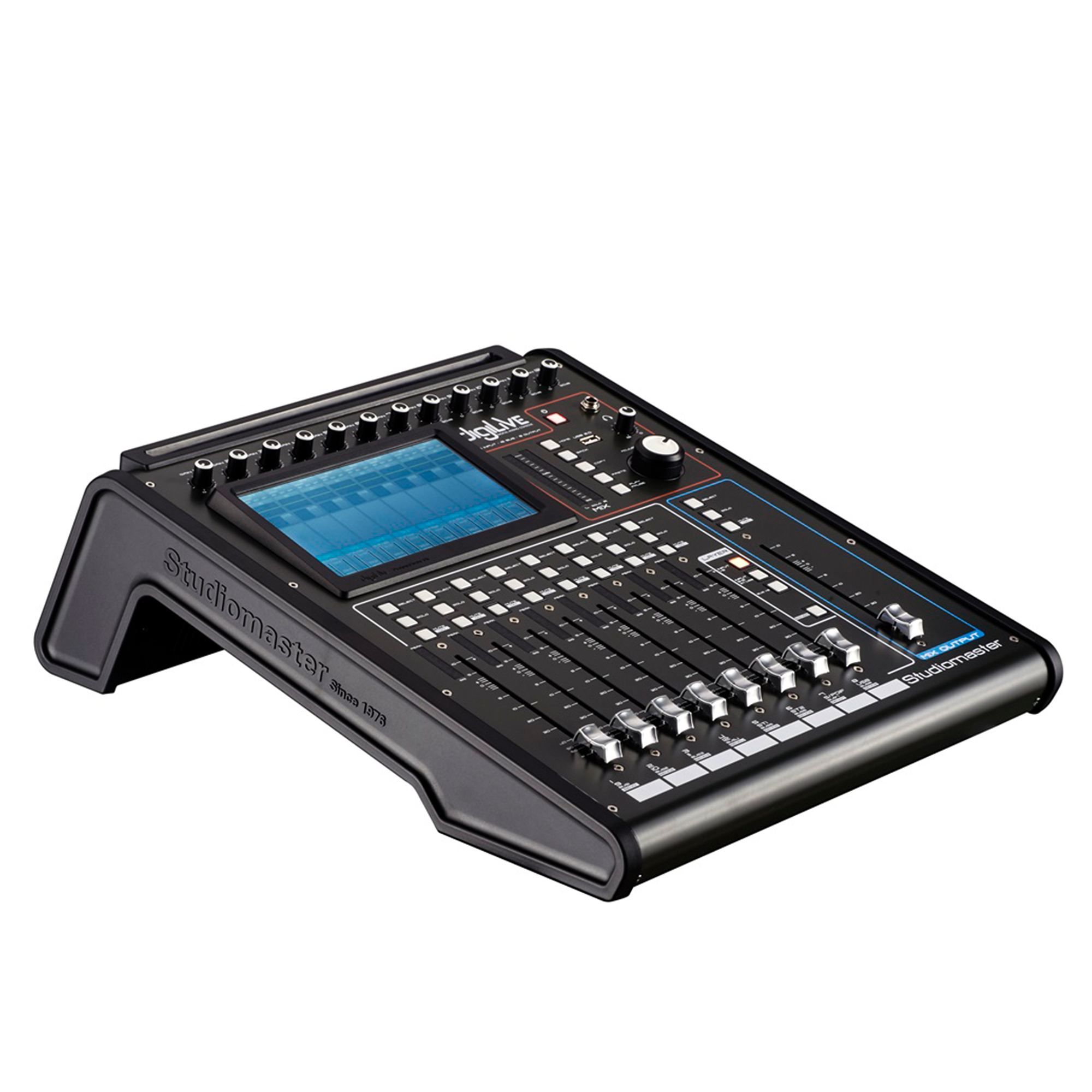

STUDIOMASTER digiLivE 16
20 INPUT DIGITAL MIXING CONSOLE

16 Analogue Inputs: 12 Mics / 2 Stereo Pairs
4 Digital Input: Stereo USB Playback / SPDIF

The Studiomaster Digilive 16 is a digital mixing console from the British console designers.

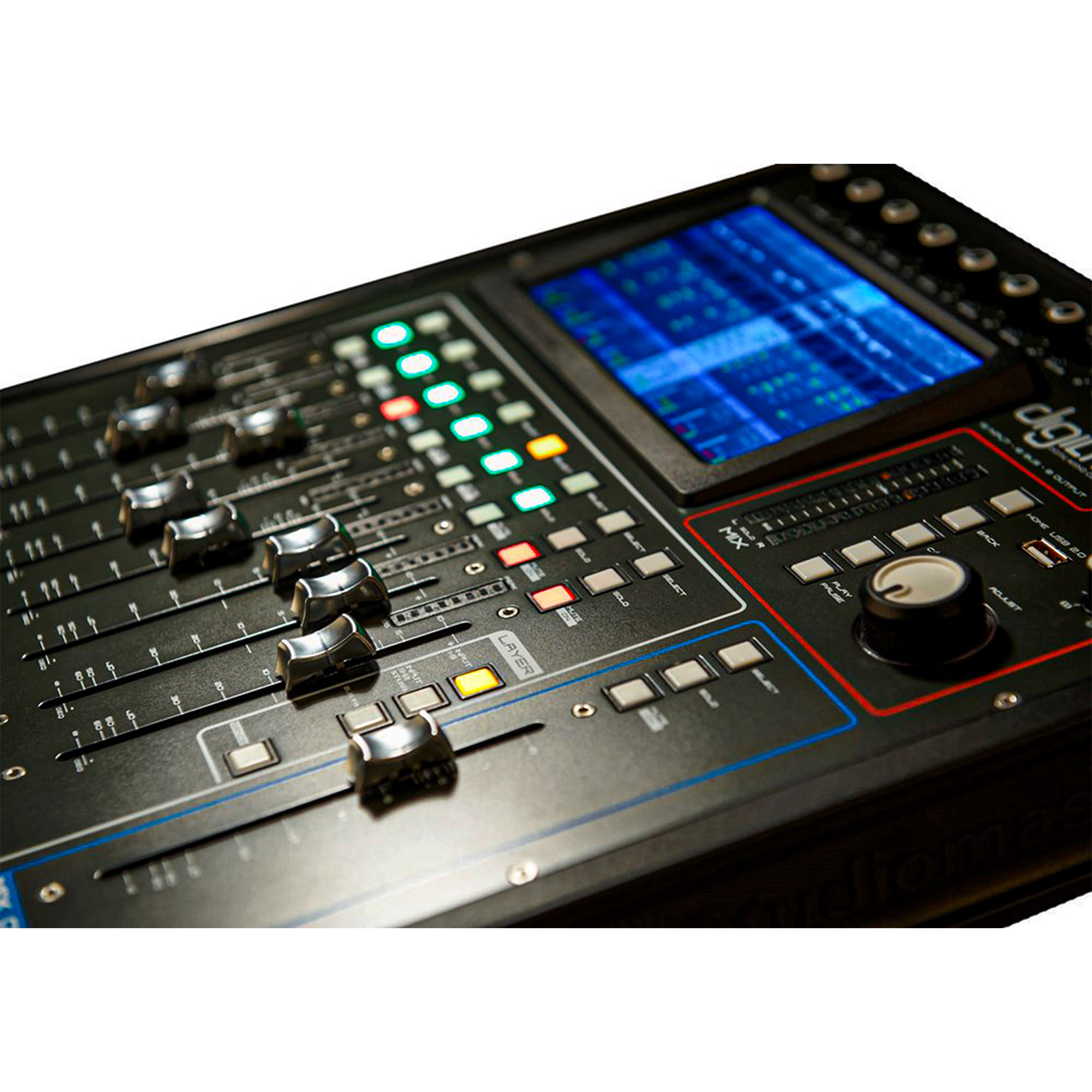

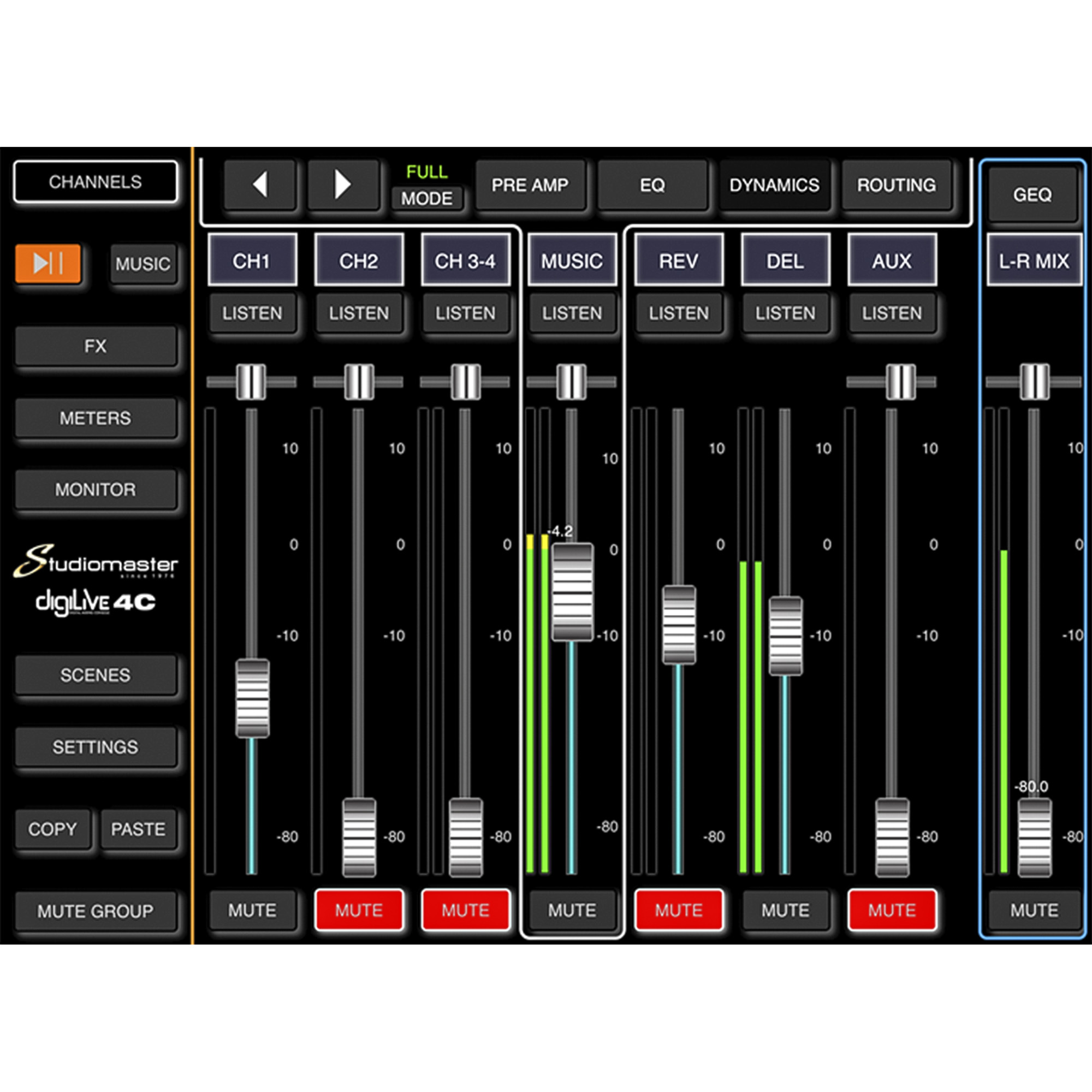

Optimised for venue installations or travelling bands, this console features a slew of mixing and routing capabilities, processed by the powerful onboard audio engine - which is accessible from the bright, responsive 7" touch screen. Cleverly navigate the 16 physical inputs, 8 smart outputs, virtual buses and sends using 'Fader Layer' technology, which allows multiple channels to be controlled using just 8 hardware faders. These space saving faders are motorised and synchronised with your current on-screen set-up, meaning the Digilive can instantly recall your current mix settings for fine tuning and effortless mixing.

Each channel can take advantage of flexible routing, and a host of input effects such as gating, compression, EQ, HPF, polarity switching, +48V, bus send options as well as a multiple onboard effects ranging from modulation to reverb and echo.

Using one of the two USB ports, a WiFi dongle can be added to the console, meaning mixing can be done remotely from anywhere in the venue with use of an Apple iOS or Android device. The second USB port can be used to read and play media on a USB card.

PRODUCT DETAILS:

Controlled via any device with Wi-Fi or LAN (PHONE, TABLET, LAPTOP or PC, multi platform)
16 input with 16 internal busses
12 professional mic input channels
2 stereo inputs
8 configurable smart outputs
7″ high resolution touch screen
9 motorised 100mm faders
Advanced hybrid user interface

PRODUCT SPECIFICATIONS:

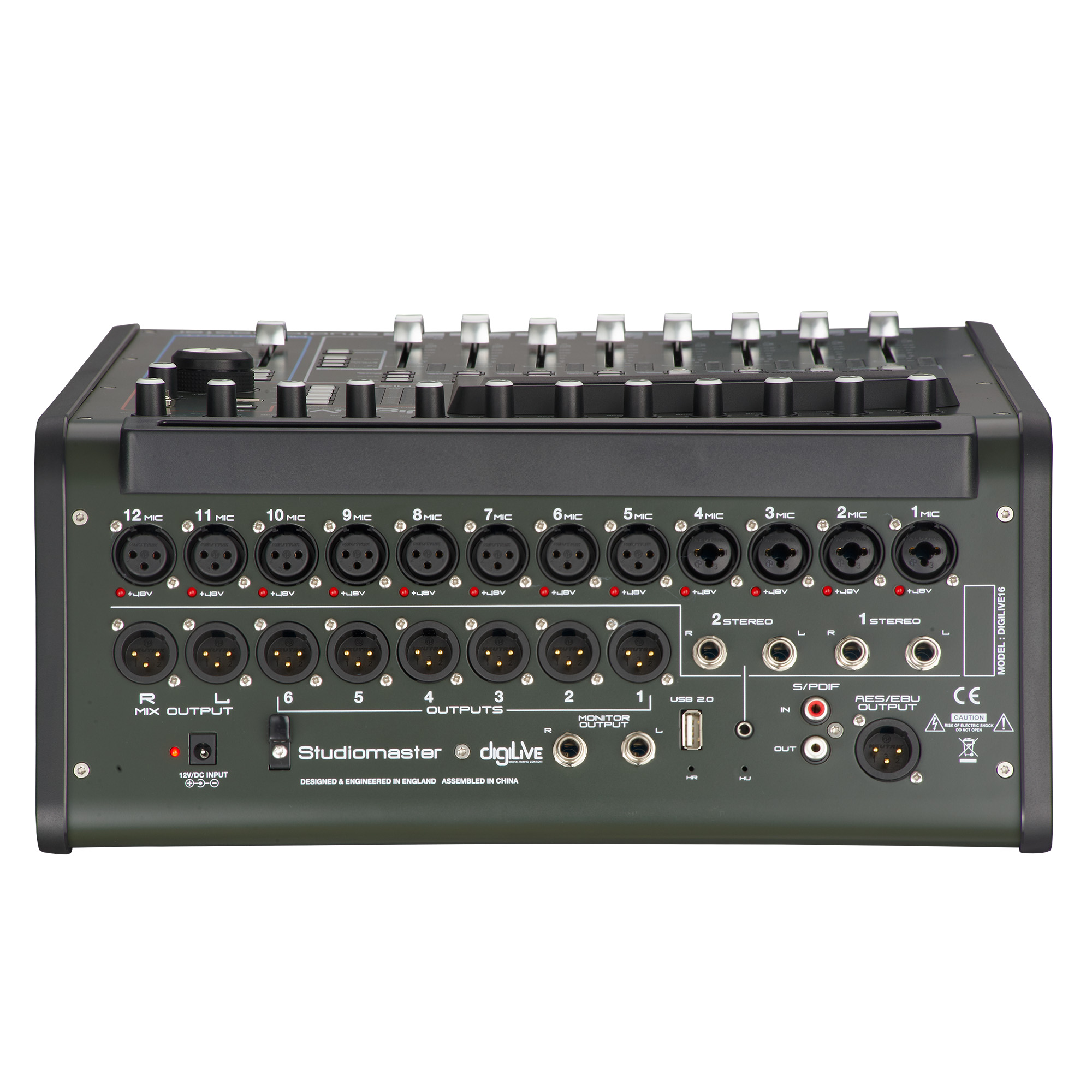

Mic Inputs: 12 (8x XLR / 4x Combo XLR)
Stereo Inputs: 2
Master Output: 2 (Left/Right balanced XLR)
Smart Outputs: 6 (assignable balanced XLR)
Internal busses: 16
Stage monitor: 1 TRS Jack output
Headphone: 1 TRS Jack output
Screen: 7″ high definition touch screen
Faders: 8x motorised 100mm channel faders + 1x motorised 100mm master L/R mix
Operating System: Android System
Remote system: IOS & Android apps for iPad and tablet
Network: Yes, via WiFi module
Sample Frequency: 48 KHz
AD/DA: 192 KHz, 24-bit
DSP: 40 bit float point, SHARC processor
Effects: up to 8 assignable effect modules
AES/EBU: Output XLR
S/PDIF: Input / Output (RCA Phono)
USB Interface: 2 for playback/recording on USB card, scene/setting storage and system updates
Power Supply: 90-240V ~ 50/60Hz power supply 12VDC
Dimension W*H*D: 357 x 480 x 145 (mm)

Simple to use interface with 3 operation modes FULL, BASIC, LOCK (lock mode only allows fader/media operation)

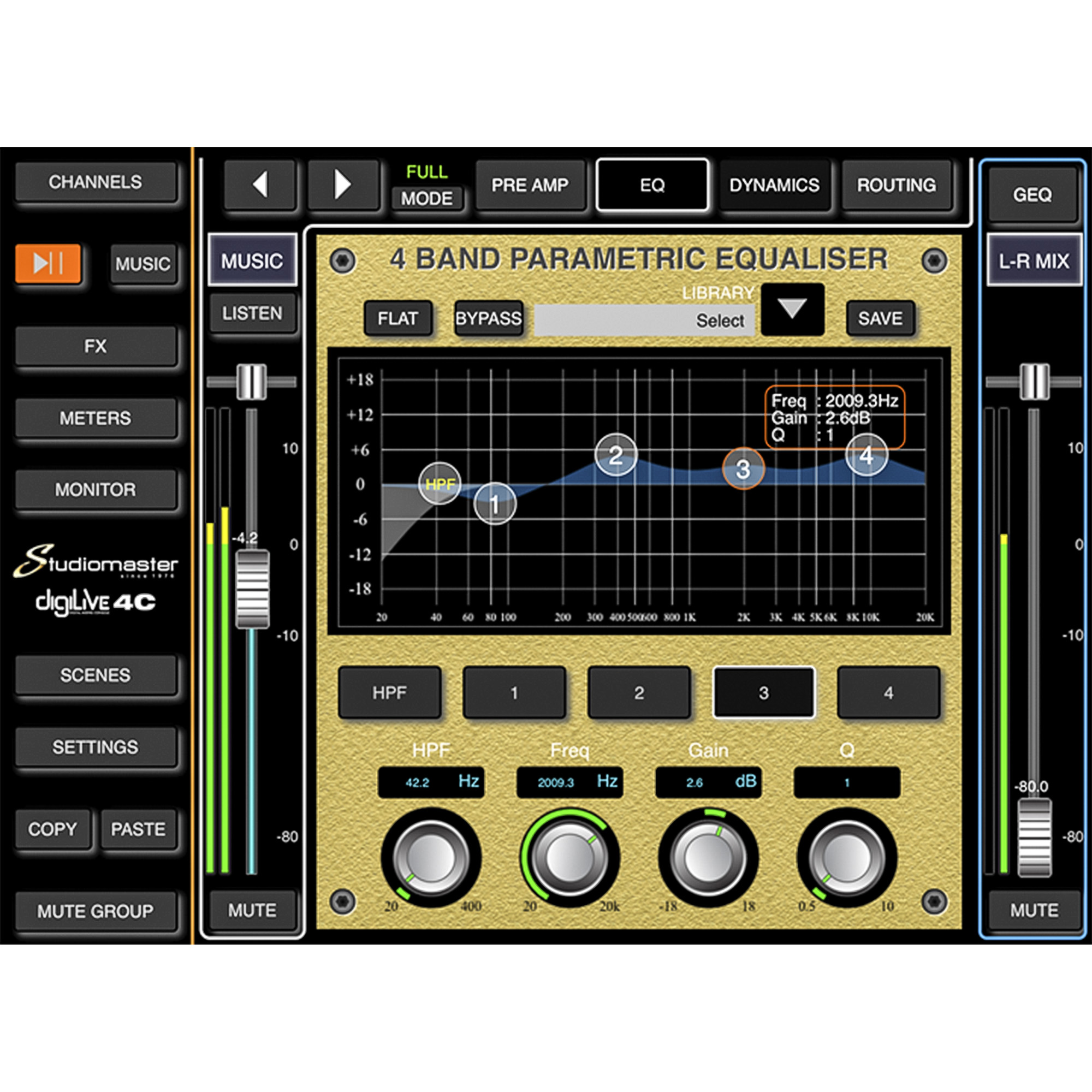

4 band parametric EQ HPF and intuitive operation SAVE EQ TO PRESETS (basic mode converts EQ to 4 band fixed)
Analogue inspired bus/effect routing Double tap the faders to get fast to zero EASY TO VIEW BUS ROUTING (you can even choose pre or post fade)

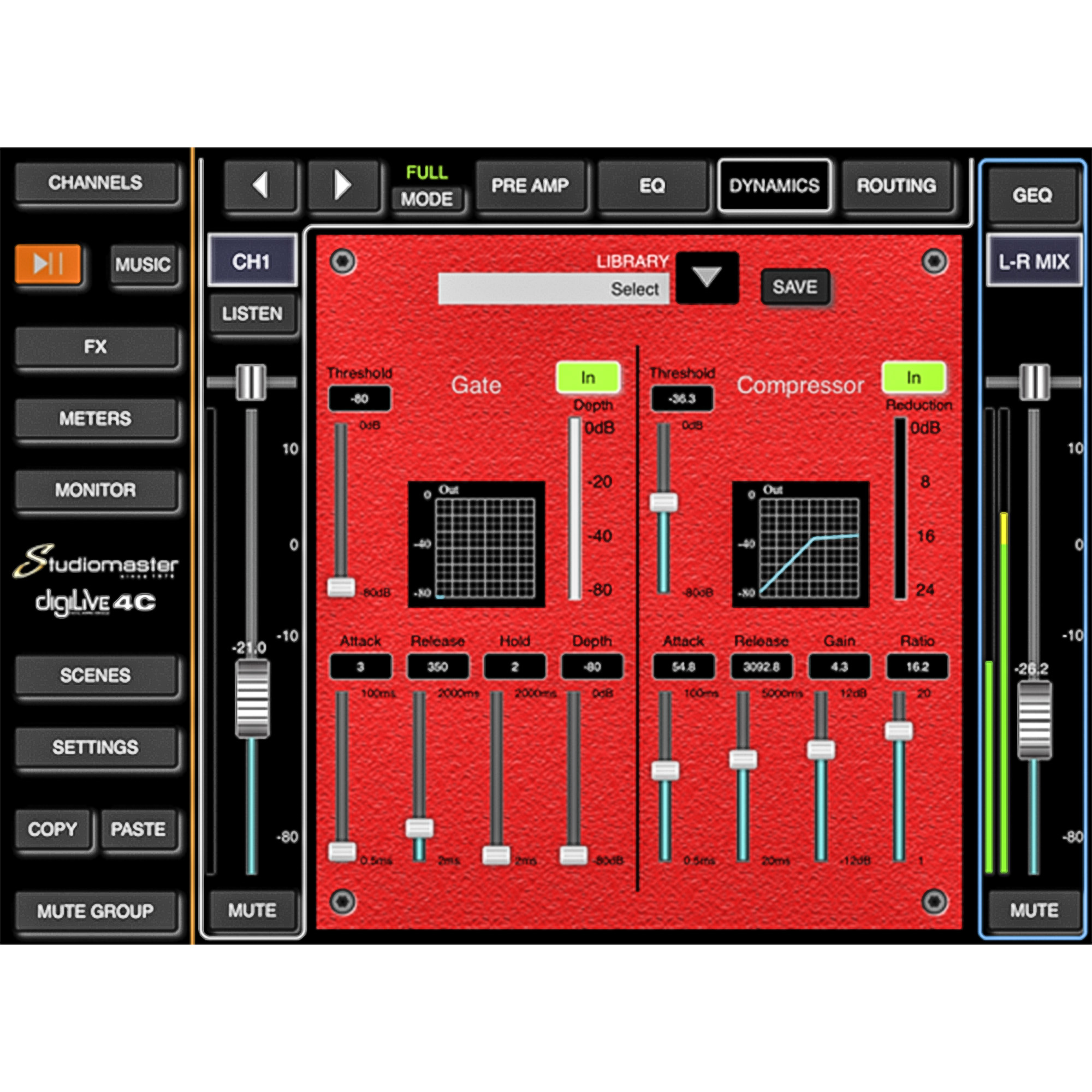

High quality compression and gate dynamics Save presets to your library for easy recall BASIC MODE gives simple one control (easy to understand graphical display)

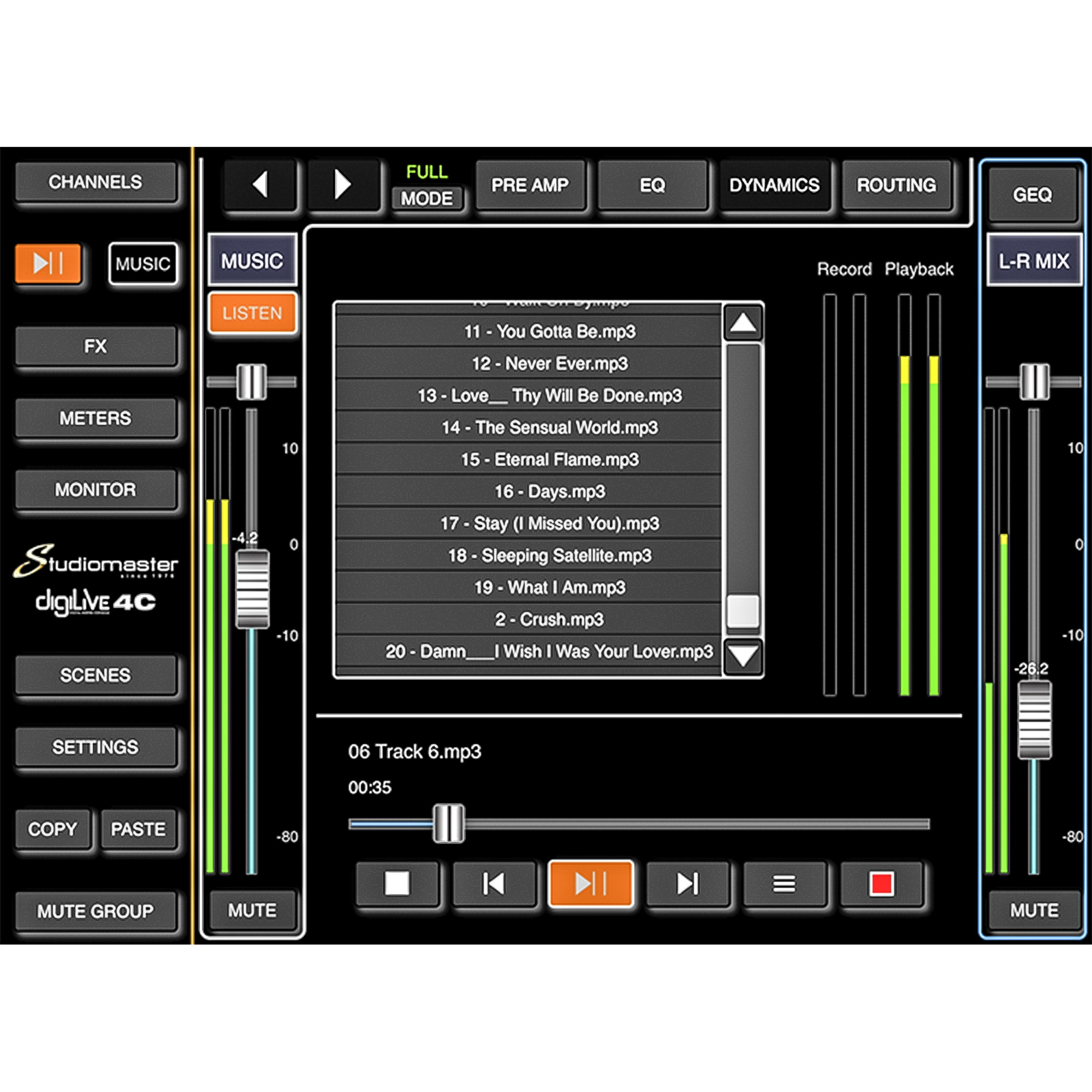

Media player with simultaneous recording Play multiple formats from MP3 to WAV ONE TOUCH OPERATION TO PLAY (records L/R main mix in stereo WAV)

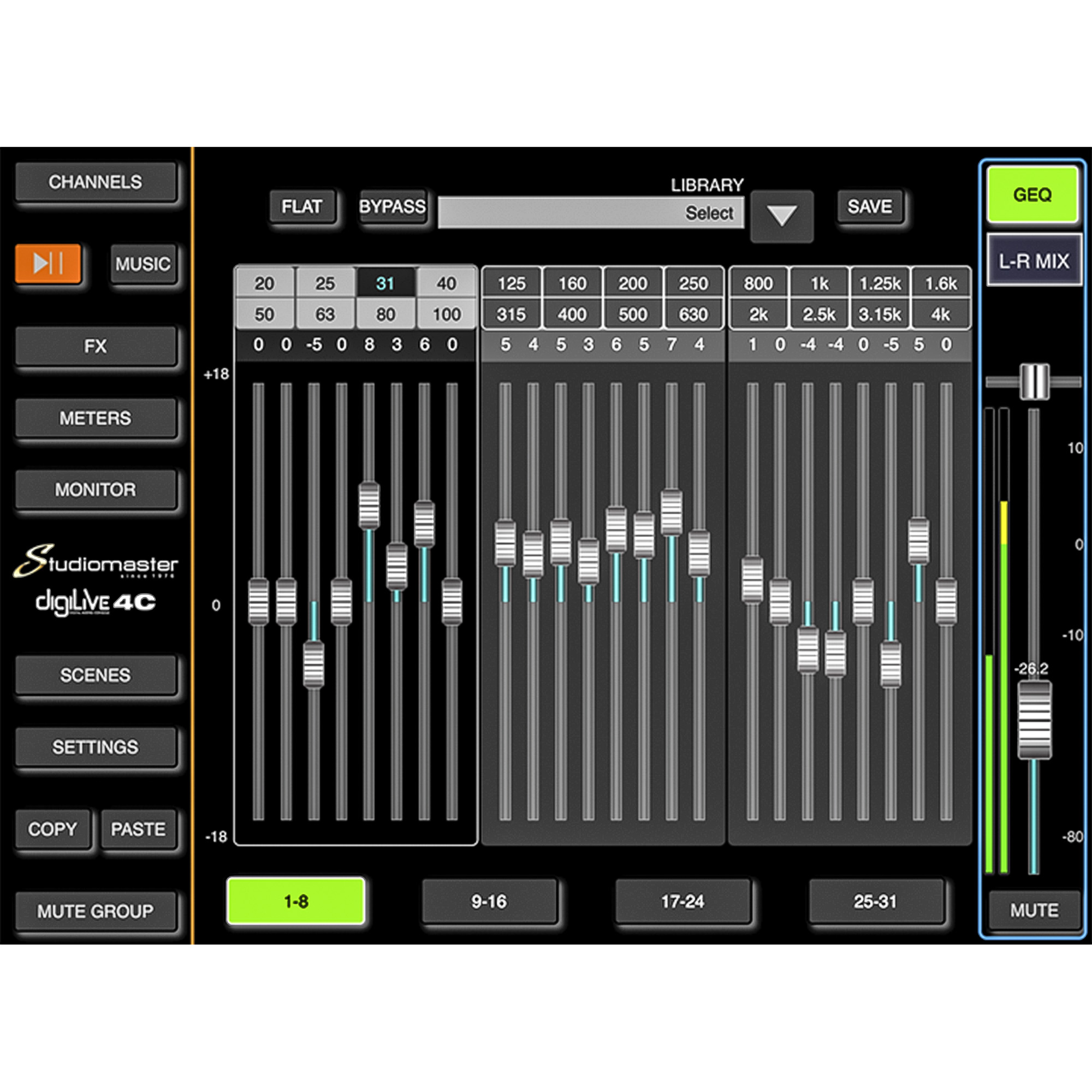

31 band graphic on L/R main mix outputs Easy to use and save to your library FULL CONTROL OVER YOUR MIX (double tap the control to centre the fader)



STUDIOMASTER digiLivE 16
20 INPUT DIGITAL MIXING CONSOLE

16 Analogue Inputs: 12 Mics / 2 Stereo Pairs
4 Digital Input: Stereo USB Playback / SPDIF

The Studiomaster Digilive 16 is a digital mixing console from the British console designers.
Optimised for venue installations or travelling bands, this console features a slew of mixing and routing capabilities, processed by the powerful onboard audio engine - which is accessible from the bright, responsive 7" touch screen. Cleverly navigate the 16 physical inputs, 8 smart outputs, virtual buses and sends using 'Fader Layer' technology, which allows multiple channels to be controlled using just 8 hardware faders. These space saving faders are motorised and synchronised with your current on-screen set-up, meaning the Digilive can instantly recall your current mix settings for fine tuning and effortless mixing.

Each channel can take advantage of flexible routing, and a host of input effects such as gating, compression, EQ, HPF, polarity switching, +48V, bus send options as well as a multiple onboard effects ranging from modulation to reverb and echo.

Using one of the two USB ports, a WiFi dongle can be added to the console, meaning mixing can be done remotely from anywhere in the venue with use of an Apple iOS or Android device. The second USB port can be used to read and play media on a USB card.

PRODUCT DETAILS:

Controlled via any device with Wi-Fi or LAN (PHONE, TABLET, LAPTOP or PC, multi platform)
16 input with 16 internal busses
12 professional mic input channels
2 stereo inputs
8 configurable smart outputs
7″ high resolution touch screen
9 motorised 100mm faders
Advanced hybrid user interface

PRODUCT SPECIFICATIONS:

Mic Inputs: 12 (8x XLR / 4x Combo XLR)
Stereo Inputs: 2
Master Output: 2 (Left/Right balanced XLR)
Smart Outputs: 6 (assignable balanced XLR)
Internal busses: 16
Stage monitor: 1 TRS Jack output
Headphone: 1 TRS Jack output
Screen: 7″ high definition touch screen
Faders: 8x motorised 100mm channel faders + 1x motorised 100mm master L/R mix
Operating System: Android System
Remote system: IOS & Android apps for iPad and tablet
Network: Yes, via WiFi module
Sample Frequency: 48 KHz
AD/DA: 192 KHz, 24-bit
DSP: 40 bit float point, SHARC processor
Effects: up to 8 assignable effect modules
AES/EBU: Output XLR
S/PDIF: Input / Output (RCA Phono)
USB Interface: 2 for playback/recording on USB card, scene/setting storage and system updates
Power Supply: 90-240V ~ 50/60Hz power supply 12VDC
Dimension W*H*D: 357 x 480 x 145 (mm)

Simple to use interface with 3 operation modes FULL, BASIC, LOCK (lock mode only allows fader/media operation)
4 band parametric EQ HPF and intuitive operation SAVE EQ TO PRESETS (basic mode converts EQ to 4 band fixed)
Analogue inspired bus/effect routing Double tap the faders to get fast to zero EASY TO VIEW BUS ROUTING (you can even choose pre or post fade)
High quality compression and gate dynamics Save presets to your library for easy recall BASIC MODE gives simple one control (easy to understand graphical display)
Media player with simultaneous recording Play multiple formats from MP3 to WAV ONE TOUCH OPERATION TO PLAY (records L/R main mix in stereo WAV)
31 band graphic on L/R main mix outputs Easy to use and save to your library FULL CONTROL OVER YOUR MIX (double tap the control to centre the fader)
